Single Slot Patio Drain Made to Order 130mm (W) x Custom Depth
SKU:

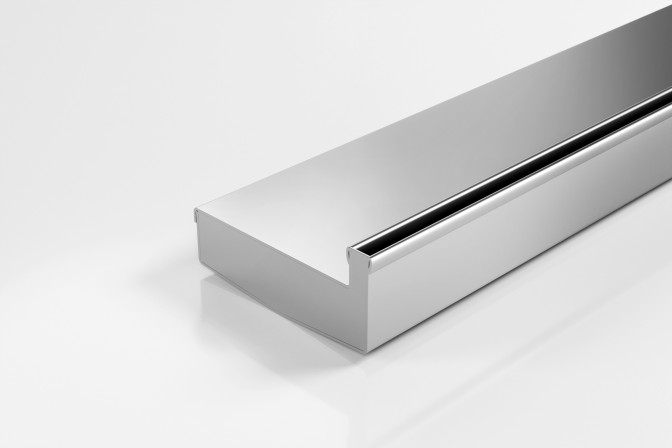

The 130SDi Single Slot Drain is designed to provide discreet, effective drainage for modern landscapes and external surfaces.

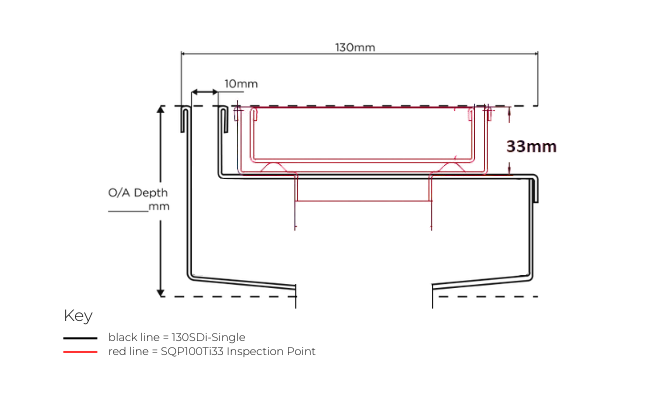

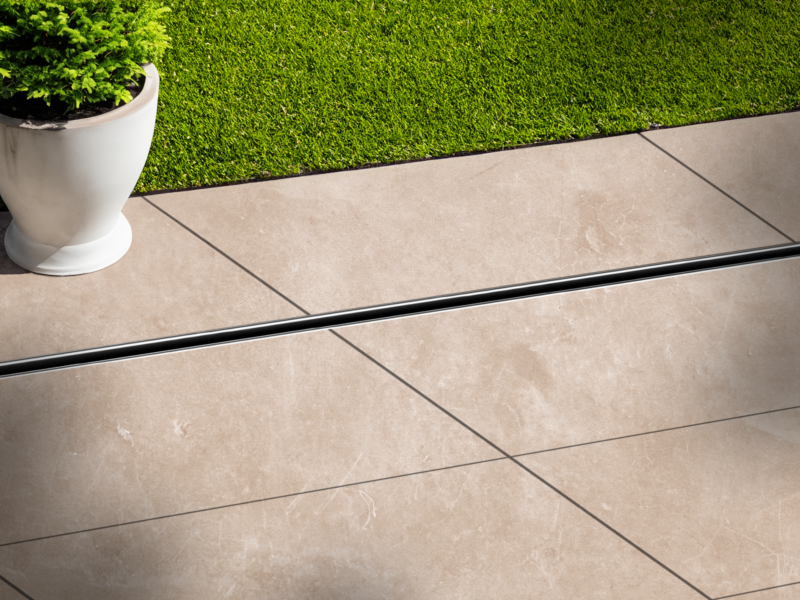

Featuring a narrow 10mm slot opening, the system offers a clean and virtually invisible integration within paved areas while efficiently managing surface water runoff. The design allows for a seamless finish that maintains a continuous surface appearance without compromising drainage performance.
Suitable for use with pavers up to 25mm in thickness, the 130SDi integrates neatly with a wide range of external paving applications.

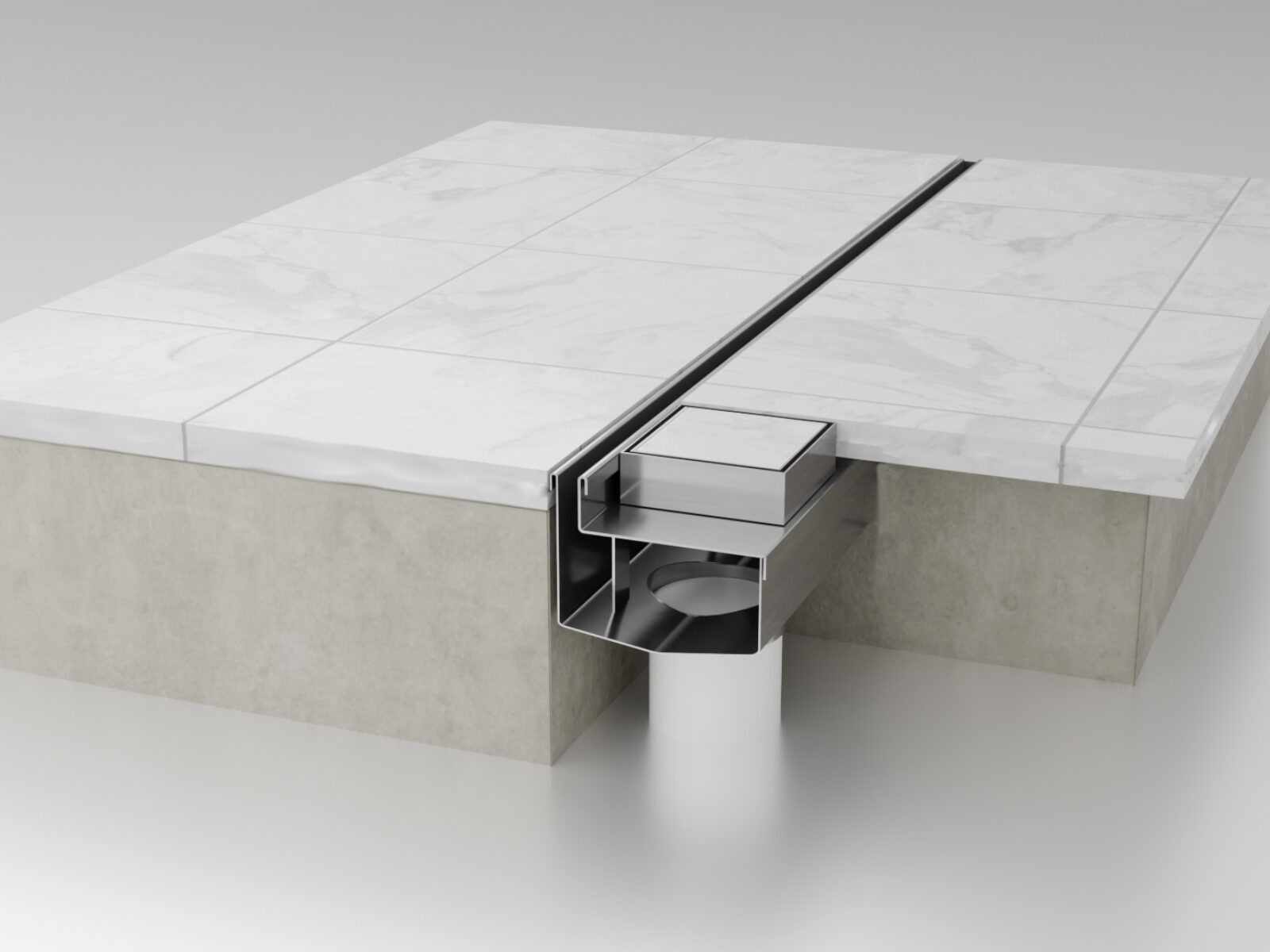

Inspection points are positioned above each outlet to accommodate a square floor waste or clear-out point, allowing for straightforward access and easy maintenance once installed.
Compatible Square Floor Waste for Inspection Points: SQP100Ti33
A completely bespoke, made-to-order unit manufactured entirely from 316 stainless steel with customised channel depth and outlet position/inspection points.​​
​​The TDiS range is suitable for both indoor and outdoor applications thanks to the high-quality materials, offering exceptional durability and resistance to corrosion. Once installed, the grate can be removed from the channel for easy maintenance, ensuring a long-lasting and hassle-free drainage solution.
£420.00
Description
The 130SDi Single Slot Drain is designed to provide discreet, effective drainage for modern landscapes and external surfaces.
Featuring a narrow 10mm slot opening, the system offers a clean and virtually invisible integration within paved areas while efficiently managing surface water runoff. The design allows for a seamless finish that maintains a continuous surface appearance without compromising drainage performance.
Suitable for use with pavers up to 25mm in thickness, the 130SDi integrates neatly with a wide range of external paving applications.
Inspection points are positioned above each outlet to accommodate a square floor waste or clear-out point, allowing for straightforward access and easy maintenance once installed.
Compatible Square Floor Waste for Inspection Points: SQP100Ti33
A completely bespoke, made-to-order unit manufactured entirely from 316 stainless steel with customised channel depth and outlet position/inspection points.​​
​​The TDiS range is suitable for both indoor and outdoor applications thanks to the high-quality materials, offering exceptional durability and resistance to corrosion. Once installed, the grate can be removed from the channel for easy maintenance, ensuring a long-lasting and hassle-free drainage solution.
Related products
How to Order
Modular Drainage Kits and Square Floor Drains can be purchased online – simply add to your basket and checkout.
For Custom Made Drainage Units, contacting us here, or call us on 01483 346 460
Let us know your requirements and we will work with you to find the most suitable product.
When you are happy with the quote we provide you and your invoice is paid, your Channel Drain will be shipped.
What’s Included
Modular Drainage Kits Include:
x1 316 Stainless Steel/Anodised Aluminium Grating
x1 uPVC Channel Base
x1 Outlet
x1 Pair Of Endcaps
Straight Connectors are supplied with orders over 1500mm, and 90 degree corner sections are available depending on your project requirements – please let us know.
Custom Made Drainage Units:
As our Made-to-Order units are completely bespoke to your project, all fittings (outlet, endcaps, straight connectors, 90 degree corners) will be welded to your 316 Stainless Steel Channel Base.
Square Floor Drains:
x1 316 Stainless Steel/Anodised Aluminium Grating
x1 316 Stainless Steel Square Base with Welded Outlet
Delivery Details
Orders placed after 12pm will be shipped on the next working day with delivery lead time of 2-3 working days (depending on stock availability).
Please note, products that are made-to-order have an average delivery lead time of 18-24 working days once design has been finalised.
Click here to review our returns policy.
