Wedge Wire Channel Drain Kit 74mm x 27mm

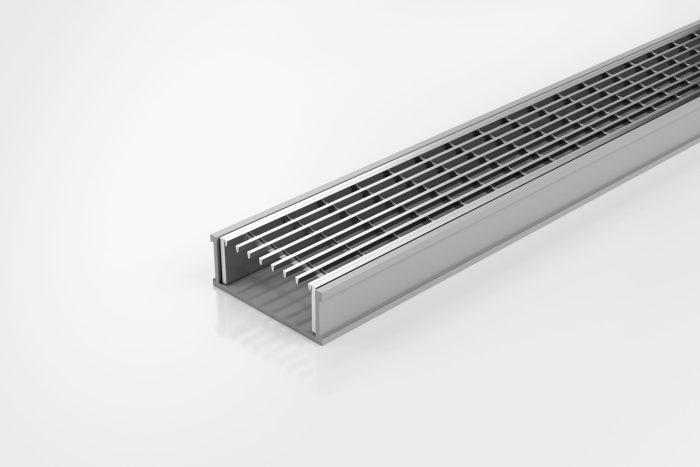

The 65TRG25 incorporates a standard style grate design, encased in a uPVC channel base.

It features a 3mm wedge wire with 5mm gap grate manufactured from 316 marine grade stainless steel, combined with a uPVC drainage channel and fixtures. A modular site finish system designed for flexibility and ease of installation.

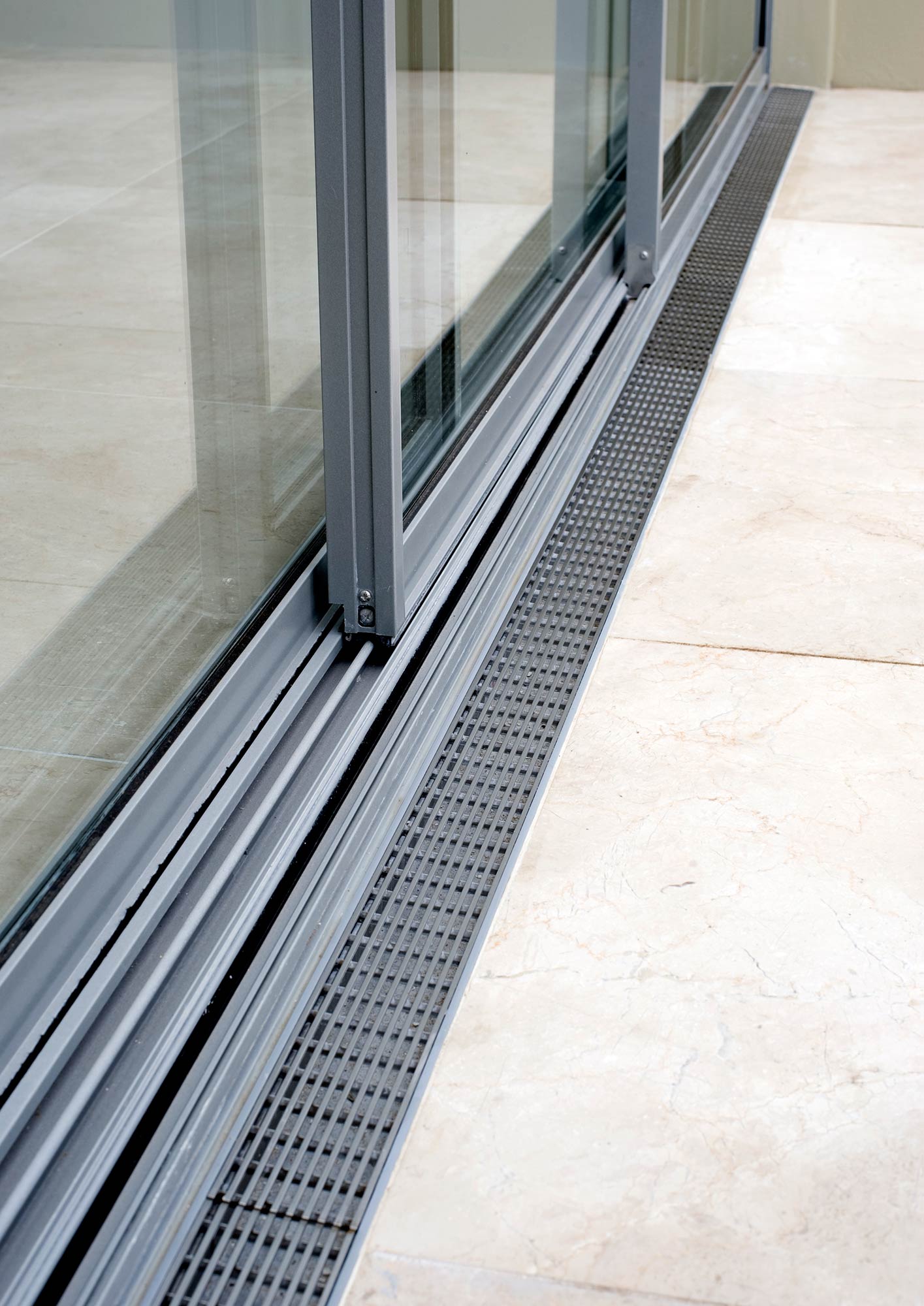

​​​The 65TRG25 is suitable for both indoor and outdoor applications thanks to the high-quality materials, offering exceptional durability and resistance to corrosion. Once installed, the grate can be removed from the channel for easy maintenance, ensuring a long-lasting and hassle-free drainage solution. ​

Lengths longer than 1500mm are supplied in sections with joint connectors.

SKU: 65TRG25

Description

The 65TRG25 incorporates a standard style grate design, encased in a uPVC channel base.

It features a 3mm wedge wire with 5mm gap grate manufactured from 316 marine grade stainless steel, combined with a uPVC drainage channel and fixtures. A modular site finish system designed for flexibility and ease of installation.

​​​The 65TRG25 is suitable for both indoor and outdoor applications thanks to the high-quality materials, offering exceptional durability and resistance to corrosion. Once installed, the grate can be removed from the channel for easy maintenance, ensuring a long-lasting and hassle-free drainage solution. ​

Lengths longer than 1500mm are supplied in sections with joint connectors.

Additional information

Length

1000mm, 1200mm, 1500mm, 900mm

How to Order

Orders can be made by contacting us here, or call us on 01483 346 460

Let us know your requirements and we will work with you to find the most suitable product.

When you are happy with the quote we provide you and your invoice is paid, your Channel Drain will be shipped!

What’s Included

Each Kit with uPVC Channel Base includes:
x1 316 Stainless Steel/Anodised Aluminium Grating
x1 uPVC Channel Base
x1 Outlet
x1 Pair Of Endcaps
Straight Connectors are supplied with orders over 1500mm, and 90 degree corner sections are available depending on your project requirements – please let us know.

As our Made-to-Order units are completely bespoke to your project, all fittings (outlet, endcaps, straight connectors, 90 degree corners) will be welded to your 316 Stainless Steel Channel Base.

Delivery Details

Orders placed after 12pm will be shipped on the next working day with delivery lead time of 2-3 working days (depending on stock availability).

Please note, products that are made-to-order have an average delivery lead time of 18-24 working days once design has been finalised.
